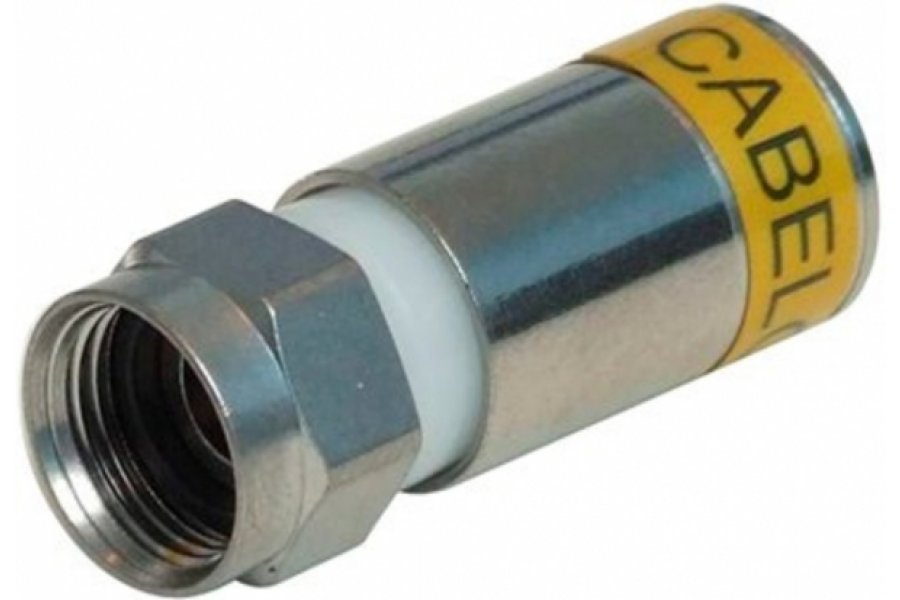

CABELCON F CONNECTOR COMPRESSIE 4.9 (lange schacht)

Artikelnr:	Q001839
Merk:	Cabelcon

Highlights & details

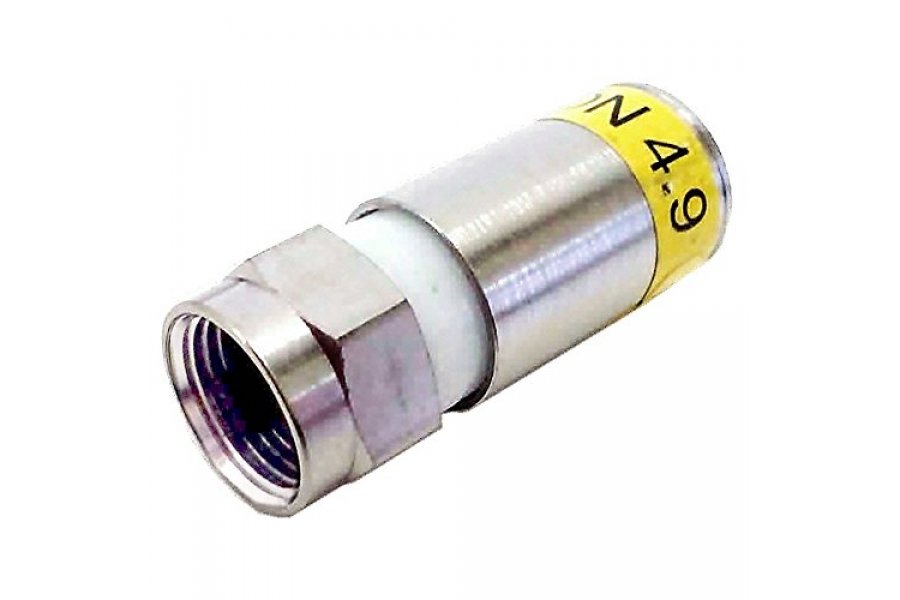

connector with 4.9 label

Connectors are crimped for watertightness

NITIN-6™ coated

For RG59 cable

For coaxial cable with approx. 4.5 mm dielectric, and 6.6 - 7.0 mm outer diameter

Description




Corning Cabelcon CX3-RG59/6 compression connectors have been developed for digital multimedia applications and meet IEC and SCTE standards. The transfer impedance of the CX3-RG59/6 connectors is low: less than 0.2 mOhm / connector in the return path range 5 - 30 MHz. This is very important for the shielding of the connectors used in the return path range. The one-piece connector is manufactured with a HEX 11 (7/16) revolution nut. This facilitates simple and reliable installation. For unique identification and simple measurement on site, the type and trim dimensions are imprinted on the casing. The trim dimensions correspond to the standard dimensions 6.5/6.5 mm. An additional seal is not required. The O-ring in the front panel provides a waterproof connection as per IPX8.



Features


Nominal impedance: 75 Ohm

Operating range: up to 3 GHz

Transfer impedance: < 0.2 mΩ/connector (5 - 30 MHz)

Shielding: always better than the cable specifications

Tensile strength: always better than the cable specifications

Operating temperature: -40° to +85° C

Water resistance: passes the IPX 8 test: 30 m water/8 h

Coating: NITIN-6™.
