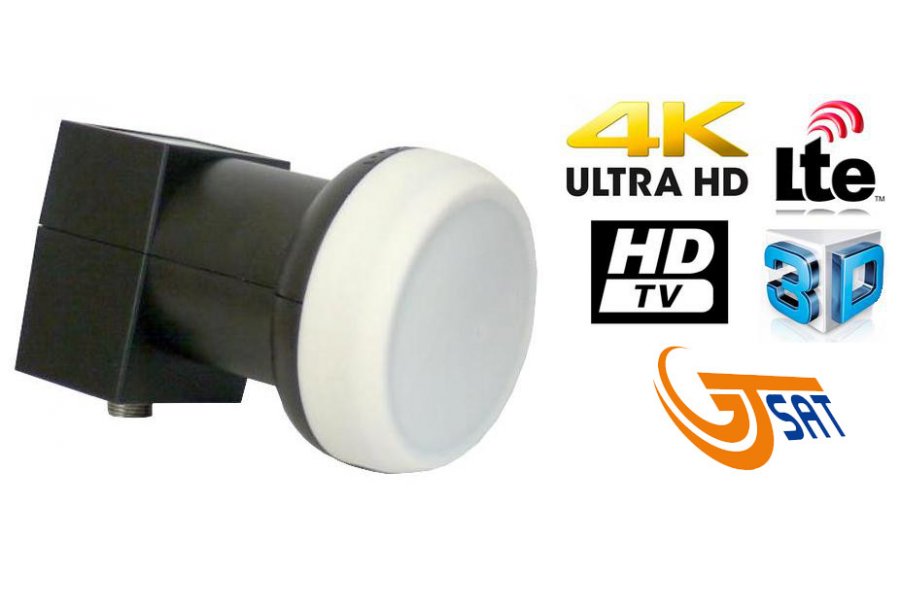

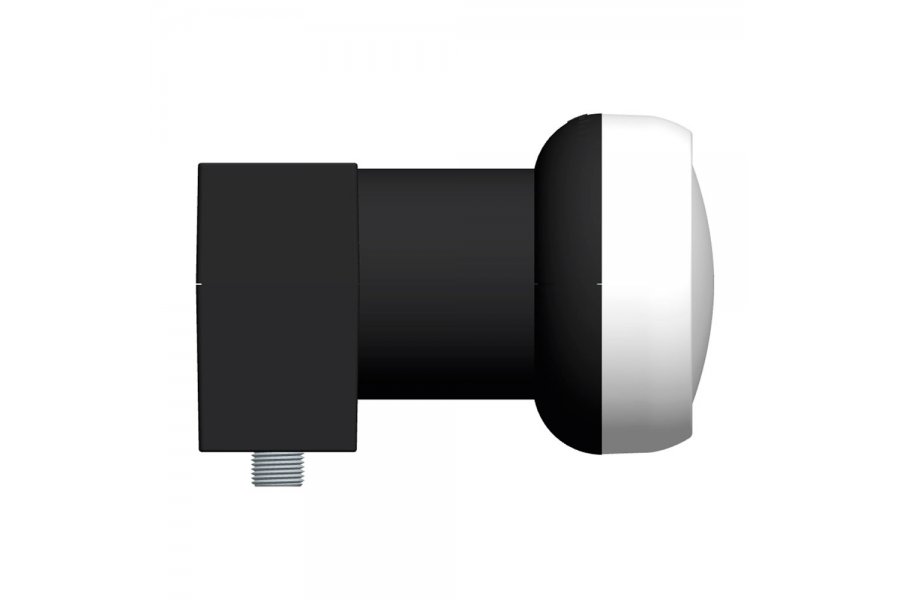

GT SOLO LNB GT-S40M

Artikelnr:	Q002236
Merk:	GT
EAN:	5453001611945

SOLO LNB GT-S40M HD 4K

o.a. voor

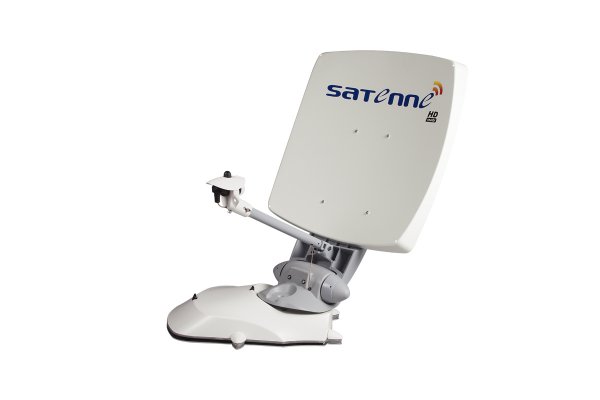

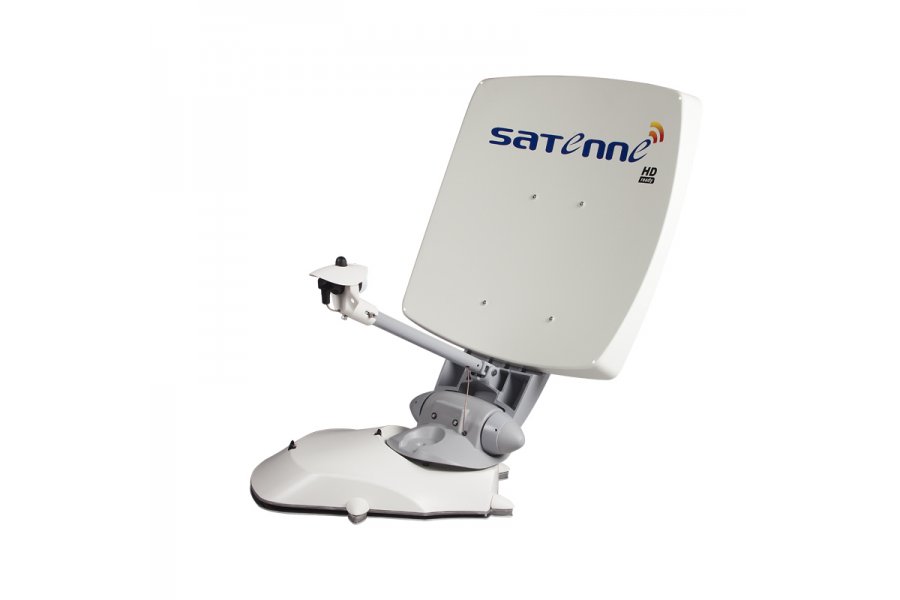

Satenne R2
Satenne R3
Megasat Premium 70
Mobilsat


Input Frequency Range Low band : 10.7 ~ 11.7 GHz
High band : 11.7 ~ 12.75 GHz
Output Frequency Range Low band : 950 ~ 1950 MHz
High band : 1100 ~ 2150 MHz
LO Frequency Low band: 9.75 GHz
High band : 10.60 GHz
LO Frequency Stability +/-0,5 MHz (Max)@ room temperature
LO Frequency Phase Noise -60 dBc/Hz @ 1KHz (Max.)
-85 dBc/Hz @ 10KHz (Max.)
-100 dBc/Hz @ 100KHz (Max.)
Noise Figure 0.1 dB (Typ.)
Conversion gain 57 ~ 61 dB
Gain Flatness 26 MHz Bandwith +/-0.5dB (Typ.)
Polarity Switch Voltage VERTICAL: 11.0 ~ 14.0 Vdc
HORIZONTAL: 16.0 ~ 20.0 Vdc
Band Switching Low band: 0 kHz
High band: 22 kHz (+/- 4 kHz)
Cross. Pol. Isolation 25 dB (Typ.)
Image Rejection 40 dB (Min.)
Current Consumption 75 mA (Typ.)
Output Connector Type 75 OHMS F-Female
Output Spurious <-60dBm
Operating Temperature Range -40°C ~ +65°C
Feed Lenght 26 mm
